Asus GTX1080Ti Review: This time it is no longer the most expensive!

[PConline evaluation] Want to come to everyone's impression of ASUS ROG series graphics cards are still at the highest price level! But this time ASUS GTX1080Ti non-public version of the price let us surprise, Rao is the highest positioning ASUS ROG-STRIX-GTX1080TI-O11G-GAMING, the price is also only with other AIC's top non-public products (6400 yuan Left and right). What is the reason for Assos to let go of his high profile? Let's take a closer look.

ASUS ROG STRIX-GTX1080TI-O11G-GAMING Reference Price: Loading... Image Reviews Quote Parameter Overview

Appearance: still familiar formula, or familiar taste!

ASUS ROG-STRIX-GTX1080TI-O11G-GAMING can be said in appearance and ASUS ROG STRIX-GTX1080-O8G-GAMING is basically the same, using NVIDIA public version of the face-cut shroud design, also joined the 6 RGB LED The light strips have added more personalization elements while retaining the three-dimensionality of the facet, and because of this, Asustek has reduced the appearance of the product by a factor of more than the expenditure (it is just a matter of directly using the GTX1080 model). I think this is part of the reason why ASUS ROG-STRIX-GTX1080TI-O11G-GAMING can lower the price.

The backplane is also the same, and it is all familiar with the design of ROG LOGO RGB Belief Lamps and the texture of the blackened backplane. The slight difference is that the original "ASUS STRIX" Logo is removed. Now.

The whole card size is 300×117×50mm, and the conventional three-fan graphics card specifications are quite compatible with most of the chassis.

The external power supply is 8+8Pin, which is 2Pin more than the public version, helping the high frequency.

I/O ASUS ROG-STRIX-GTX1080TI-O11G-GAMING has made some improvements on the basis of the public version, adding a DVI-D interface and changing one of the DP interfaces to the HDMI interface. More friendly.

Mentioned the eyes of the declining, they will absolutely miss the lights. ASUS software developed by Asustek can be used to perform a variety of lighting effect adjustments for ASUS ROG-STRIX-GTX1080TI-O11G-GAMING. It supports 16.8 million colors and gives everyone the last light effect. Illustration.

No matter how many times you look, ROG's lighting effect is still so seductive!

Also on the backboard, the huge ROG defeated the eyes of the family, and the lights on the shroud are synchronized!

There is also a "REPUBLIC OF GAMERS" RGB light at the top. This card can be said to infiltrate all aspects of the product. Laugh~

After reading the lights, let's take a look at the specifications.

ASUS ROG-STRIX-GTX1080TI-O11G-GAMING parameter specifications comparison

ASUS ROG STRIX GTX1080Ti O11G GAMING parameter comparison
Video Name ASUS GTX1080Ti NVIDIA GTX1080Ti Core Architecture Pascal Pascal Transistors 12 Billion 12 Billion Process Technology 16nm 16nm Stream Processor 3584 3584 Texture Unit 224 224 ROPs 88 88 Memory Capacity 11GB 11GB Memory Bit Width 352Bit 352Bit Core Frequency 1569-1683MHz 1481-1582MHz Memory Frequency 11008MHz 11008MHz External power supply 8+8Pin 6+8Pin Price 6399 yuan 5699 yuan

Specifications: ASUS ROG-STRIX-GTX1080TI-O11G-GAMING will increase the frequency by 88MHz to 1569-1683MHz on the basis of the public version, and then the external power supply will have two more pins than the public version. The remaining parameters are the same as those of the public version. . The general price quoted by e-commerce providers is 6,399 yuan, which is equal to other AIC top non-public products. This is relatively rare in the pricing of Assos's top-level products. According to the past, it would have been worth 300 yuan more than the market price.

Then look at the dismantling.

Enhanced heat dissipation, SAP II super alloy power supply design, 10-phase power supply

Dismantling, or a little bit troublesome, after all, the flagship product, dismantling and fixing are quite effort, after removing four spring screws have to remove a variety of small screws to remove the bracket in order to split the various parts of the graphics card.

The heat dissipation aspect is very different from that before. The most obvious difference is that the direct heat transfer method of the heat pipe is canceled, and a mirror direct contact technology called MaxContact is used. At the same time, a heat pipe is added to improve the heat dissipation performance. After all, GTX1080Ti The core generates more heat.

The design of PCB-reinforced brackets has always been on ASUS' high-end cards.

The back of the thermal paste patch, to consolidate the PCB while also helping the memory and power module cooling, it is actually two!

There are also some small features worth mentioning, Aura Sync RGB pins on the end of the PCB can help achieve synchronization of lighting effects; also equipped with fan connectors, through the second-generation ASUS FanConnect technology, allowing chassis fans and other GPU, CPU temperature Run, optimize cooling efficiency, reduce noise.

The power supply uses SAP II super alloy power supply design, and is equipped with 10-phase power supply to help high-frequency. Full plate automated process technology is used during production to ensure reliable quality.

The core code is GP102-350-K1 A1, GDDR5X memory chips, single capacity 1GB, a total of 11, 11G memory capacity, memory bandwidth 352Bit, bandwidth 502GB/s!

Then see how the performance?

3DMark Theory Test and Game Performance Test
Hardware platform
CPU Intel i7-7700K Motherboard ROG MAXIMUS IX FORMULA Memory Zhichi Trident Z RGB DDR4-3200 8G×2 Hard Disk Plextor M6V 512GB+ A-DATA SU800 256G Power Supply Zhenhua Iceberg Kingdee 1300W Graphics Card
ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
NVIDIA GTX 1080Ti
NVIDIA GTX TITAN X
NVIDIA GTX 1080
NVIDIA GTX 980Ti
AMD R9 Fury X
software platform
Operating System Windows 10 Pro 64bit Graphics Card Driver NVIDIA GeForce 381.65
AMD Crimson Edition 17.5.2

Test Platform Description: The test platform is a mainstream consumer platform Z270+i7 7700K. A total of six graphics cards were selected for comparison testing. The driver is the latest A/N graphics driver. (In order to optimize the form, the following table named Chung Shuo ROG-STRIX-GTX1080TI-O11G-GAMING is abbreviated as ASUS GTX1080Ti.)

3DMark theory test

In addition to the two FireStrike Ultra & Extreme tests that we commonly use, 3DMark Theory Test adds 3DMark's latest DirectX 12 benchmark for game PCs, Time Spy, to provide a more comprehensive reference for everyone.

Theoretical test summary: In terms of comprehensive 3DMark theoretical performance results, the performance of Asus ROG-STRIX-GTX1080TI-O11G-GAMING is not much higher than the public version, which is about 4% higher. This is also related to the frequency of this card. After all, the machine frequency of 1569MHz is not outstanding in the same price competition!

Let's look at how it behaves in the game.

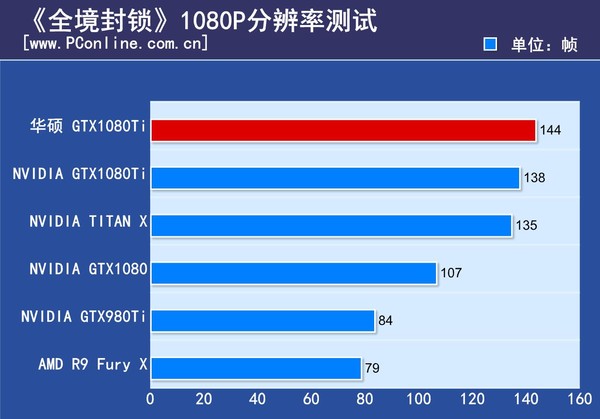

Game performance test

The future is undoubtedly the world of DX12. In this test, we selected 6 representative DX12 game masterpieces. Among them, there are many native killer 6s, Tomb Raider 10, and Warhammer: Total War support DX12. "Outbreak: Human Breaking" and the latest "Phantom Operation: Wilderness" and later "Blockade" for DX12.

Test summary: In terms of actual game experience, the ASUS ROG-STRIX-GTX1080TI-O11G-GAMING is also fairly pleasing. The average number of frames exceeds the public version between 2-6 frames (depending on the game), though Not so aggressive, but definitely able to meet all game requirements with the highest resolution in 4K and below! What's more, there is room for overclocking with more care!

Platform power test

In order to get closer to the real scenes in the player's daily applications, and to more fully understand the power consumption of the ASUS ROG-STRIX-GTX1080TI-O11G-GAMING, we will use the 3DMark stress tester, game copying machine, and standby applications. Measure the platform power consumption.

Power consumption test summary: In terms of power consumption, because the clock speed has increased by 88 MHz, the power consumption of game and copying machine of ASUS ROG-STRIX-GTX1080TI-O11G-GAMING is still about 40W higher than that of the public version, and the standby power consumption is similar. In general, a 600W power supply can meet its needs.

Video card temperature test

To test the temperature limit under the radiator, we used the 3DMark stress test to test.

Test summary: At room temperature 26°C, the highest temperature of ASUS ROG-STRIX-GTX1080TI-O11G-GAMING is 68°C, which is 16°C lower than that of the public radiator.

Card noise test

Here we measure the fan noise when the noise test card runs 3DMark stress test at full load.

Test summary: The fan noise was 48.5 decibels when the machine was dubbed. It was very quiet. Overall, the improved ASUS heat sink performed very well! In such a low noise situation, it can maintain a low temperature. If the fan speed is properly raised and the noise is controlled below 60 decibels, the temperature will be even lower.

About noise:
0 - 20 db: very quiet, almost imperceptible; 20 -40 db: quiet, like whisper; 40 - 60 db: normal general indoor conversation; 60 - 70 db: noisy: denervated; 70 -90 db: Very noisy, nerve cells are damaged. 90 -100 db: Intensified noise, impaired hearing; 100 - 120 db: Unbearable, one minute or temporary deafness. 120 decibels or more: Extremely paralyzed or fully paralyzed; 300 decibels or more or more: Irreversible deafness for people with a radius of 20 km.

PConline graphics ladder diagram

The ladder diagram shows: Based on the above test results, we will place ASUS ROG-STRIX-GTX1080TI-O11G-GAMING higher than the public version of GTX1080Ti.

PConline evaluation room summary

ASUS ROG STRIX-GTX1080TI-O11G-GAMING Reference Price: Loading... Image Reviews Quote Parameter Overview

"In a sense, the ROG has become closer to the people!" I know this seems funny, but the fact is that; do not believe we can look at e-commerce offer, basically the major AIC all price their flagship products About 6399 yuan, ASUS ROG-STRIX-GTX1080TI-O11G-GAMING is no exception (to know that but no other home than your 500 does not give up), then Asustek why would this price down so much?

There are two conjectures: First, copy the design of ASUS ROG STRIX-GTX1080-O8G-GAMING to reduce the cost of mold opening; Second, the frequency requirements are no longer so harsh, the previous ROG flagship graphics core frequency must be commercially available high frequency! However, this has also limited its shipments and pushed up the cost; this time the frequency is lowered to 1569MHz, which is naturally a lot looser for ROGs. The yield rate has come up, and the price naturally goes down.

At the same time, however, there will be some problems, compared to the same price competition (such as Sotec GTX1080Ti-11GD5X PGF OC 1620MHz), ASUS ROG-STRIX-GTX1080TI-O11G-GAMING no longer dominate the core frequency, the rest Only cool RGB lighting effects, excellent workmanship materials and excellent cooling performance (of course, competing products are not bad), there is ... ... faith! This ROG is not worth your money?

ASUS ROG STRIX GTX1080Ti advantages and disadvantages reviews
Advantages Disadvantages

1, 1569MHz high frequency, performance ultra public version
2, After the optimization of the cooling program, heat more powerful noise is smaller
3, 10-phase power supply, SAPII super alloy power supply design, with material
4, full-automated process technology, reliable quality
5, 11G large memory, Fun 4K, VR no pressure
6, cool RGB lighting effects, to meet the individual needs of users

1, as the flagship frequency is low, competitive in front of competing products is not strong

ASUS ROG STRIX GTX1080Ti O11G GAMING parameter comparison
Video Name ASUS GTX1080TiNVIDIA GTX1080Ti Core Architecture PascalPascal Transistor Number 12 Billion 12 Billion Process Technology 16nm 16nm Stream Processor Texture Unit 224224ROPs8888 Memory Capacity 11GB 11GB Memory Bit Width 352Bit352Bit Core Frequency 1569-1683MHz1481-1582MHz Memory Frequency 11008MHz 11008MHz External Power Supply 8+8Pin6+8Pin Price 6399 yuan 5699 yuan
Hardware platform
CPU Intel i7-7700K motherboard ROG MAXIMUS IX FORMULA memory Zhiqi Trident Z RGB DDR4-3200 8G×2 hard drive Plextor M6V 512GB+ DATA SU800 256G power supply Zhenhua iceberg Kingdee 1300W graphics card
ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
NVIDIA GTX 1080Ti
NVIDIA GTX TITAN X
NVIDIA GTX 1080
NVIDIA GTX 980Ti
AMD R9 Fury X
software platform
Operating System Windows 10 Pro 64bit Graphics Driver NVIDIA GeForce 381.65
AMD Crimson Edition 17.5.2
ASUS ROG STRIX GTX1080Ti advantages and disadvantages reviews
Advantages Disadvantages

1, 1569MHz high frequency, performance ultra public version
2, After the optimization of the cooling program, heat more powerful noise is smaller
3, 10-phase power supply, SAPII super alloy power supply design, with material
4, full-automated process technology, reliable quality
5, 11G large memory, Fun 4K, VR no pressure
6, cool RGB lighting effects, to meet the individual needs of users

1, as the flagship frequency is low, competitive in front of competing products is not strong
