The landlord married last year and renovated the house from July. Since it has been worth buying and entering the pit for a long time, naturally there are many projection solutions that reach people through the home, and the new decoration is also a good one. For economical and practical purposes, the full set of investment goals is no more than 1W6. In the end, due to the landlord's tricks, a total of 1W blocks were used to settle. Although the effect is not as good as various outfits, it is basically sufficient for home use. Today, it's just too hot.
Part I: Main Equipment (Screen, HD Line, Projector)
First look at the effect of the final molding.
The curtain could not fall because the size of the furniture was not good enough. There was an extra cupboard in the other room. We had to plug it in there, and it did not affect the view, but it directly led to a look-up type and needed to look up at the screen. Fortunately, the landlord family is always used to sitting in the front row in the cinema (basically, the fourth row is forward), so it is still adaptable. Other values ​​don't forget this when reinstalling the projector.
This is a projector. When LZ installed the projection, it was in a passionate, but no knowledge, white stage. It did not even know that before installing the projector, it needed to design the screen position first, and then determine the position of the projection and alignment according to the position of the screen. The result was that I first walked the two high-definition lines arbitrarily according to my own thoughts, thinking that it would be nice to wait for the decoration to buy a wooden board and pin it on the wall. Then put the projector on it. As a result, when the projector was finally installed, it was found to be a tragedy. The projector needed to be 35 cm from the wall. It was a bit far from the HD line exit, and the racks that were already bought were not used. No way but to buy a hanger, put on a makeover, ugly it ugly. The HD line is very difficult to see at the exit of the wall. Because I bought a high-definition HD line and didn't have a suitable panel, I bought a waterproof panel box for two bathrooms. . .
The landlord chooses Optoma HD26 projector, mainly think that the basic functions have, 1080P + 3200 lumens + 3D + two 3D glasses, the most important is the new ah last year, as long as 4999 can get, Also ride a bike! At that time, there was an alarm on the Jingdong panic buying (Jingdong called HDF536). The result was that it was 12 o'clock and it was found that it was second. Jingdong, you couldn't afford it! ! After two days, it was found that there were value-for-money friends, and I was in the same situation as me. He took the HD26 directly to Tmall. The landlord knew that it had the name and decisively moved to Tmall.
projector
Hanger is selected for music, hanging, side support, adjustable length. When I bought it, I didn't know that the song was a brand. After I got it, I found that it was very strong and there were no glitches. After 2 months, it seems that it is worthwhile to buy products that have music songs in the test. It is only because they know that songs still come. The hanger took 59 to get.
The HDMI line is made by the domestic Green Alliance. The line is very thick and is estimated to have 1 cm. LZ's living room is about 4 meters wide. The decorator has asked me to buy a 12-meter line. The result is a bit long. Fortunately, it doesn't affect the use. I just throw the extra part behind the TV cabinet to eat ash. In order to prevent later use of the wire, LZ simply let the master walk two lines in the wall at a time. As a result, this part became the second-highest cost in the entire cinema, with 136 single lines and 60 lines and one meter, which totaled 1712. If you don't care about taking the open line, you can actually take the open line and you can't spend so much money.
There are many people talking about the projection screen. The leaves are naturally tall, but there are many fakes and the cost is too high. Therefore, LZ finally found a store in Zhongguancun with Taobao on the Taobao site and took delivery. The product interface is written in red leaves, but to the store's owner is very real to say that it is not the leaves, it is other brands. Think about how you can't really see good or bad, or whether material is more important, so orders are placed directly under the line, 100-inch gray glass fiber screen, plus the hand-drawn screen into an electric screen, a total of 450 pieces. Regarding the size, the width of the landlord's living room is about 3 meters 2. The 100-inch curtain width is 2.16 meters, and the curtain box is more than 2 meters. Then also set aside about 10 cm to install the power panel, and then LZ wanted to install the cabinet air conditioner, the right must save about 70 cm, so you can only give up the dream of 120-inch, on the 100-inch. From time to time, it still feels a bit small. . .
OK. This is almost the basic equipment. With these things, at least the goal of lighting up the screen can be achieved. Then there is another issue that needs to be addressed, film source and audio issues.
Second: Audio and Video (TV Boxes, Speakers, and Routers)

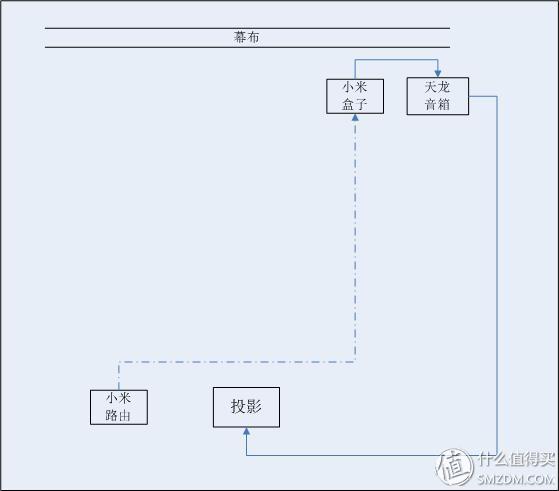

First of all, before installing the projection, we need to consider what the main function of this projection is. The landlord's projection is mainly to see a big screen movie at home, play a big screen game, and occasionally see a ball, that is to say, live TV is not my primary starting point. Therefore, for this purpose, the landlord finally adopted the following schematic solution (please forgive the landlord for using visio's flow chart to draw this thing.):
The main video source is Xiaomi's box with its own video source and other installed APPs. At the same time, it adds a Xiaomi router, which can be directly downloaded to the built-in hard disk when the movie is downloaded, and then read wirelessly using the millet box. The main audio source is Tianlong sound bar + subwoofer kit, and then import the projector. In this way, the audio and video signals are sent from the millet box, and the audio is intercepted by the Sky Dragon, and the video is transmitted continuously, and then the video signal is transmitted through the projection. The general idea is this.
Millet box and millet routing are familiar devices that can no longer be familiar with, I do not post the purchase link, anyway, there are other e-commerce home on Taobao. Simple two photos better. Please be sure to ignore the ash on the box. . . LZ's house is too big to wipe every day. . . Are helpless. . . Millet box 299, 1T hard drive version of the millet route to catch up with Suning Tesco voucher activities, 559 won.
This is the sound of LZ's purchase. Choose this sound bar is mainly a fancy it has a subwoofer, while two HDMI interfaces, support LZ design signal relay program, and other Tianlong Haohao be a speaker manufacturer, and then placed an order. At that time, the purchase price was 998, and now Yi Xun bid 1399 but it is no longer available.
This is part of the front speakers, with 5 speakers inside to create analog stereo, and there is a sense of presence when watching a movie. Of course, it is impossible to compare with the speaker group.
This is the subwoofer part, silly big black. . .
Subwoofer rear interface. The HDMI input is connected to the millet box, where the output is buried HDMI and finally input into the projection.
After the above efforts, LZ finally achieved the goal of looking at the projection at home. Has it since embarked on the pinnacle of life? The answer is NO! Because it is not perfect!
Part 3: Auxiliary Equipment (Curtains)
(LZ will tell you this is mainly to deceive the existence of gold coins...) Maybe some valued friends think that after reading the above two parts, they have solved the problem of seeing projections, but LZ feels that it is still not enough, because the family is not enough. Black! In order to create a cinema-like effect, a good curtain is essential.

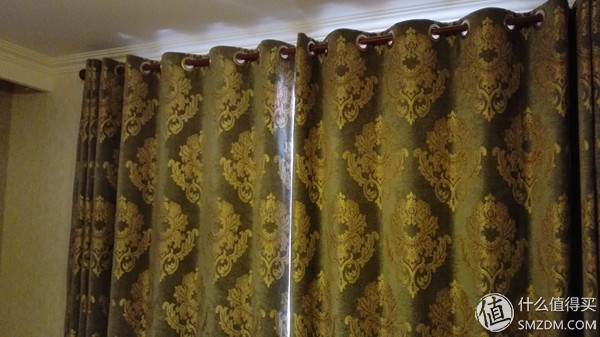

LZ curtains are made under the online home building materials city, there is no link to stick. A total of two curtains were bought at home, totaling 1600. The living room is slightly more expensive, about 900 pieces. The curtains selected a very thick cotton cloth. The boss said that the refractive index has reached nearly 90%. However, LZ still requires a shade cloth on the back of the curtains. The final result is that even in the daytime, just pull the two curtains at home. , completely unable to reach out to see five fingers, dark one (it is really dark, walking flashlight). The following figure is for photography, slightly opened a bit.
This is a shading weapon, shade cloth!
OK, here it is really come to an end, the entire equipment has been finished drying. Here is the time to calculate the total price:
Projector: 4999;
HDMI cable and installation: 1712;
Projector Hanger: 59:
Curtain: 450;
Millet box: 299;
Millet routing: 559;
Tianlong sound bar: 998;
Curtains: 900;
Total: 9976. Million-level projection program completed!
THE END
